Young One India Structural Steel Powder Coating Services in Chennai for columns, beams, frames, trusses, platforms, brackets, supports and fabricated steel structures. Durable finishes, corrosion protection and custom colours.
Structural steel is widely used for industrial buildings, warehouses, platforms, walkways, equipment supports, machinery structures, commercial buildings and fabrication projects. Proper surface protection is important because exposed steel can be affected by moisture, humidity, chemicals and other environmental conditions.
Young One India Structural Steel Powder Coating Services in Chennai provide a controlled finishing solution for suitable steel components. The process generally includes surface preparation, pretreatment where applicable, electrostatic powder application and controlled oven curing. Young One India Chennai has powder coating facilities serving industrial, architectural, electrical, automotive and general engineering sectors. Current local providers advertise powder coating for mild steel, industrial components and other ferrous and non-ferrous metals.
Structural steel coating requirements vary considerably according to component size and service environment. Large structural members may require appropriately sized batch ovens and handling equipment. Bisco India, for example, states that its Chennai facility has batch ovens capable of handling structures up to 6 metres in length.
Read More
Structural steel powder coating is a dry finishing process used to provide a protective and decorative coating over prepared steel surfaces.
Unlike conventional liquid painting, powder coating uses dry resin and pigment particles that are electrostatically applied to the grounded steel component. The coated component is then heated so that the powder melts, flows and cures into a continuous coating film.
For structural steel, the coating system should be selected according to:
For large structural steel projects, powder coating is not automatically suitable for every fabricated structure because the component must fit the coating and curing equipment. Large or site-installed structures may instead require conventional protective coating systems specified for field application.
Young One India services may include:
Step 1: Component Inspection
The steel component is inspected for:
Step 2: Degreasing and Cleaning: Oil, grease, dust and other contaminants are removed.
Step 3: Abrasive Blasting or Surface Preparation: For structural steel, abrasive blasting may be used where required to remove rust, scale and old coatings and provide a suitable surface profile.
The required surface-preparation grade should be specified by the project coating specification rather than assumed to be identical for every application.
Step 4: Pretreatment: Depending on the substrate and powder system, an appropriate chemical pretreatment may be applied.
Bisco Ultimate’s Chennai process, for example, describes a seven-stage pretreatment involving degreasing, derusting, zinc phosphating, rinsing and passivation.
Step 5: Drying: The prepared steel component is dried before powder application

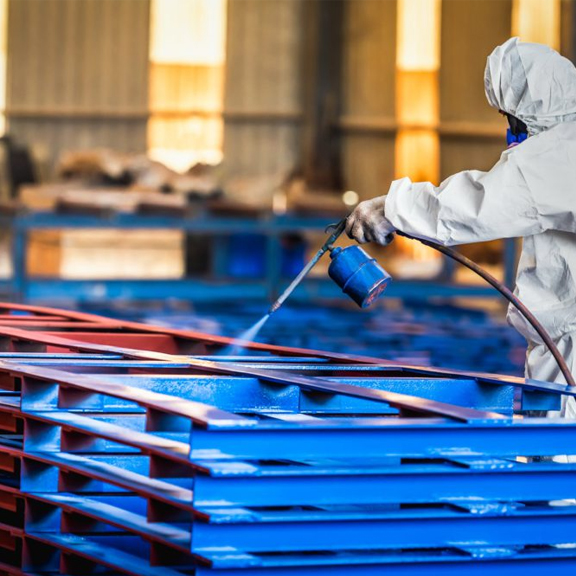

Step 6: Electrostatic Powder Application
Powder is sprayed using an electrostatic spray system. The powder particles are charged and attracted to the grounded steel surface.
Step 7: Curing
The coated component is heated in a curing oven according to the powder manufacturer’s specified curing schedule.
Step 8: Cooling
The component is cooled before handling.
Step 9: Quality Inspection
The final coating can be checked for:
A Chennai powder coating facility describes electrostatic application in a 60–80 micron range followed by oven curing at 180–200°C and checks for thickness, adhesion, gloss and impact. These are facility/process-specific values, not universal specifications for all powder coating systems.
Specifications should be finalized according to the powder manufacturer’s technical data sheet and project requirements.
| Parameter | Typical / Project-Specific Options |
| Substrate | Mild Steel / Carbon Steel / Suitable Ferrous Metal |
| Application | Electrostatic Spray |
| Powder Type | Polyester / Epoxy-Polyester / Specialty |
| Surface Preparation | Cleaning / Blasting / Pretreatment |
| Finish | Matte / Gloss / Satin / Textured |
| Colour | RAL / Standard / Custom |
| Coating Thickness | Project-Specified |
| Curing | Controlled Oven Curing |
| Application | Indoor / Outdoor, depending on system |
| Component Type | Beam / Column / Frame / Platform / Bracket |
| Quality Checks | Thickness / Adhesion / Colour / Gloss |
| Processing | Batch / Job Work / Bulk |
| Component Size | Facility-Specific |
Epoxy-polyester hybrid powders can be suitable for many indoor industrial applications. They combine characteristics of epoxy and polyester resin systems.
Potential applications include:
Bisco Ultimate describes epoxy-polyester hybrid coatings as an industrial finish for indoor machinery, switchgear, electrical panels and automotive components.
Pure polyester systems are commonly considered for outdoor applications where weather and UV resistance are important.
Potential applications include:
The specific exterior powder should be selected based on the manufacturer’s weathering data and the project’s exposure conditions.
Outdoor structural steel faces exposure to:
Chennai’s coastal and industrial environment makes the coating specification particularly important for exposed steelwork. Young One India specifically note that coastal salinity makes surface preparation and coating specification important for long-term durability
Chennai’s major industrial corridors include areas such as:
Powder coating job work is useful for structural steel fabricators that do not have their own coating line.
Large steel structures require special consideration because powder coating is generally performed inside a controlled curing oven.
Before selecting a contractor, check:
Both powder coating and liquid protective painting can be appropriate depending on the project.
| Feature | Powder Coating | Liquid Protective Painting |
| Application | Dry powder | Liquid coating |
| Curing | Oven curing | Air or controlled curing |
| Large Site Structures | Equipment-size dependent | More flexible |
| Factory Components | Highly suitable | Suitable |
| Custom Colours | Wide selection | Wide selection |
| Surface Preparation | Essential | Essential |
| Outdoor Performance | Depends on powder system | Depends on coating system |
| Field Repair | More specialized | Generally easier |
| Batch Production | Highly suitable | Suitable |
| Large Installed Structures | Usually impractical | Commonly used |
For large structural steelwork that is already erected at site, liquid protective coating systems may be more practical because powder coating requires controlled oven curing. The appropriate system should be determined by the project engineer or coating specification.
Quality control is important when powder coating structural components.
There is no single fixed price for structural steel powder coating in Chennai. Cost depends on the component’s size, weight, surface area, geometry, surface condition, preparation requirements, powder type, colour, coating thickness and quantity.
Current Chennai marketplace listings show highly varied powder coating service prices, including examples such as ₹45 per sq. ft., ₹100 per sq. ft. and other provider-specific prices. Some listings also show project-based or service-based prices that are not directly comparable on a per-square-foot basis.
Therefore, these online figures should be treated only as indicative listings, not as a standard market rate.
Structural steel powder coating can be considered for:
Young One India Structural Steel Powder Coating Services in Chennai provide a factory-controlled finishing option for suitable steel beams, columns, frames, platforms, supports, brackets, railings, fabricated structures and industrial components.
The quality of the finished coating depends on several factors, including surface preparation, pretreatment, powder selection, application, curing and inspection. For outdoor or coastal applications, the powder system should be selected specifically for the expected environmental exposure.
Young One India Chennai has powder coating facilities serving major industrial corridors such as Ambattur, Sriperumbudur, Oragadam, Thirumudivakkam, Pillaipakkam and surrounding manufacturing areas. Local providers advertise services for mild steel, industrial fabrication, architectural components and general engineering products.
For a structural steel powder coating quotation, provide the component dimensions, approximate weight, quantity, steel condition, colour, finish, coating requirement and application environment. For large structural components, confirm the coating facility’s maximum oven size and handling capacity before dispatching the material.
Structural steel powder coating is a dry finishing process in which powder is electrostatically applied to prepared steel and cured in an oven.
Yes, suitable structural steel components can be powder coated when their size, weight, geometry and intended application are compatible with the coating process.
Large beams can be coated if they fit the coating facility’s preparation, spray and curing equipment. Maximum dimensions should be confirmed before processing.
It can be suitable for appropriately sized outdoor components when an exterior-grade powder and suitable pretreatment are specified. The coating system should be selected for the actual exposure environment.
Common options include epoxy-polyester hybrid and polyester powders, along with specialty systems. The appropriate powder depends on indoor/outdoor exposure and performance requirements.
Preparation may include degreasing, cleaning, abrasive blasting and chemical pretreatment depending on the steel condition and coating specification.
Thickness is project- and powder-system-specific. One Chennai facility describes 60–80 micron application for its process, but this should not be assumed as a universal structural-steel requirement.
Prices vary according to component size, surface area, preparation, powder type, quantity and handling. Online Chennai listings show provider-specific examples ranging from approximately ₹45 to ₹100 per sq. ft. and other project-based prices.
Existing rust, scale and old coatings need to be properly removed before recoating. The condition of the steel should be assessed before processing.
Yes, fabricated components such as frames, platforms, brackets, supports, railings and suitable PEB components can be powder coated.
Generally, powder coating requires factory-controlled oven curing, so it is normally performed before installation. Site-installed large structures are more commonly protected using field-applied coating systems.
Yes. Young One India powder coating facilities offer standard and custom colours, including RAL shades, subject to powder availability.
Turnaround depends on component quantity, dimensions, surface preparation, colour, powder type and production scheduling. A quotation should include the required dispatch date.
Yes. Young One India industrial powder coating service providers handling mild steel, fabricated metal and other industrial components.
Provide the steel component dimensions, approximate weight, quantity, drawings or photographs, surface condition, colour, finish, indoor/outdoor application and required delivery schedule.
